Defines the Circuit class for modeling and simulating a circuit system. More...

#include <stdio.h>
#include <iostream>
#include <algorithm>
#include "circuit/CCircuit.h"

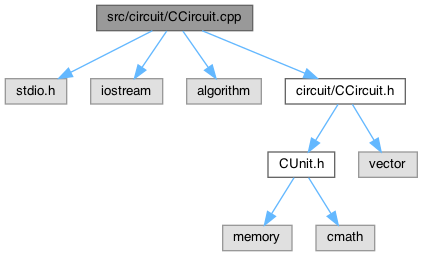

Include dependency graph for CCircuit.cpp:

Variables
const double	k_G_C = 0.004

const double	k_G_I = 0.001

const double	k_w_C = 0.0002

const double	k_w_I = 0.0003

const double	V = 10.0

const double	phi = 0.1

const double	rho = 3000.0

Detailed Description

Defines the Circuit class for modeling and simulating a circuit system.

The Circuit class provides methods to initialize, configure, and simulate a circuit with multiple units. It includes methods for checking validity, printing information, connecting units, initializing feed rates, checking convergence, and calculating flows. The Circuit class is designed to facilitate the modeling and simulation of circuits in various applications, including industrial processes and scientific research.

Date: Created on May 20, 2024

Authors

ACS Gerardium Rush - Pentlandite:

Alex N Njeumi
Geyu Ji
Melissa Y S Sim
Mingsheng Cai
Peifeng Tan
Yongwen Chen
Zihan Li

Variable Documentation

◆ k_G_C

const double k_G_C = 0.004

◆ k_G_I

const double k_G_I = 0.001

Constants for Gerardium recovery

◆ k_w_C

const double k_w_C = 0.0002

◆ k_w_I

const double k_w_I = 0.0003

Constants for waste recovery

◆ phi

const double phi = 0.1

◆ rho

const double rho = 3000.0

Constants for the circuit

◆ V

const double V = 10.0
