Circuit Class Reference

#include <CCircuit.h>

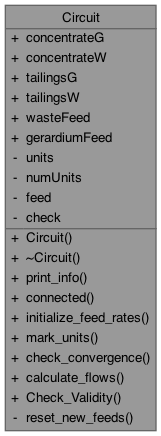

Collaboration diagram for Circuit:

Public Member Functions
	Circuit (int num_units)
	Constructs a Circuit object with a specified number of units.
	~Circuit ()
	Destructs the Circuit object.
void	print_info () const
	Prints information about the circuit.
void	connected (int *circuitVector)
	Connects the units in the circuit based on the circuit vector.
void	initialize_feed_rates (double gerardium_=10, double waste_=90)
	Initializes the feed rates for gerardium and waste.
void	mark_units (int unitNum, std::vector< CUnit * > &units, bool check[3])
	Marks a unit in the circuit and recursively marks its connected units.
bool	check_convergence (double threshold)
	Checks if the circuit has converged based on a threshold value.
void	calculate_flows ()
	Calculates the flows within the circuit.

Static Public Member Functions
static bool	Check_Validity (int vectorSize, int *circuitVector)
	Checks the validity of the circuit vector.

Data Fields
double	concentrateG
double	concentrateW
double	tailingsG
double	tailingsW
double	wasteFeed
double	gerardiumFeed

Private Member Functions
void	reset_new_feeds ()
	Resets the new feeds in the circuit.

Private Attributes
std::vector< CUnit * >	units
int	numUnits
int	feed

Static Private Attributes
static bool	check [3]

Constructor & Destructor Documentation

Circuit()

Circuit::Circuit

(

int

num_units

)

Constructs a Circuit object with a specified number of units.

Parameters

num_units

The number of units in the circuit.

~Circuit()

Circuit::~Circuit

(

)

Destructs the Circuit object.

Member Function Documentation

calculate_flows()

void Circuit::calculate_flows

(

)

Calculates the flows within the circuit.

This member function calculates the flow rates of gerardium and waste through the circuit's units.

Here is the call graph for this function:

Here is the caller graph for this function:

check_convergence()

bool Circuit::check_convergence

(

double

threshold = 1e-6

)

Checks if the circuit has converged based on a threshold value.

This member function checks whether the circuit's calculations have converged by comparing the changes in feed rates to a specified threshold.

Parameters

threshold

The convergence threshold.

Returns

True if the circuit has converged, otherwise false.

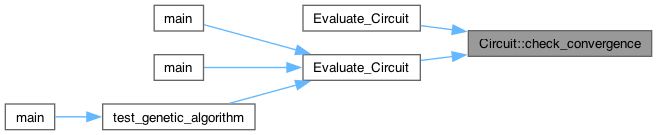

Here is the caller graph for this function:

Check_Validity()

bool Circuit::Check_Validity ( int vectorSize, int * circuitVector )

static

Checks the validity of the circuit vector.

This static member function checks whether a given circuit vector is valid. It verifies the connections and configurations of the units in the circuit.

Parameters

vectorSize	The size of the circuit vector.
circuitVector	A pointer to the circuit vector.

Returns

True if the circuit vector is valid, otherwise false.

Here is the call graph for this function:

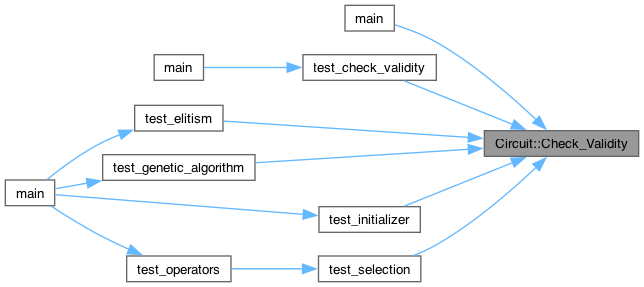

Here is the caller graph for this function:

connected()

void Circuit::connected

(

int *

circuitVector

)

Connects the units in the circuit based on the circuit vector.

This member function establishes connections between the units in the circuit according to the specified circuit vector.

Parameters

circuitVector

A pointer to the circuit vector.

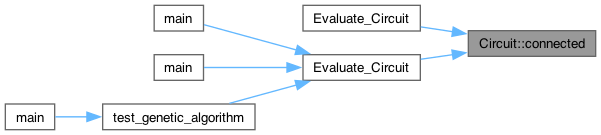

Here is the caller graph for this function:

initialize_feed_rates()

void Circuit::initialize_feed_rates	(	double	gerardium_ = 10,
		double	waste_ = 90 )

Initializes the feed rates for gerardium and waste.

This member function initializes the feed rates for gerardium and waste to the specified values.

Parameters

gerardium_	The feed rate of gerardium (default is 10).
waste_	The feed rate of waste (default is 90).

Here is the caller graph for this function:

mark_units()

void Circuit::mark_units	(	int	unitNum,
		std::vector< CUnit * > &	units,
		bool	check[3] )

Marks a unit in the circuit and recursively marks its connected units.

This function marks a specified unit in the circuit as visited. It then recursively marks all units connected to this unit through its concNum, interNum, and tailsNum connections. If a connection points to an outlet, it updates the corresponding check flag to indicate an exit has been seen.

Parameters

unit_num	The index of the unit to be marked.
units	A vector of pointers to CUnit objects representing the units in the circuit.
check	An array of three booleans that track if the concNum, interNum, or tailsNum connections lead to a circuit outlet.

Here is the call graph for this function:

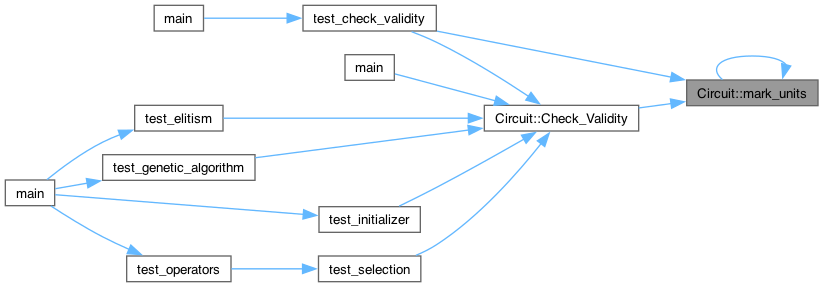

Here is the caller graph for this function:

print_info()

void Circuit::print_info

(

)

const

Prints information about the circuit.

This member function prints detailed information about the circuit, including the number of units, feed rates, and concentrations.

reset_new_feeds()

void Circuit::reset_new_feeds ( )

private

Resets the new feeds in the circuit.

This helper function resets the new feed rates in the circuit to their initial values.

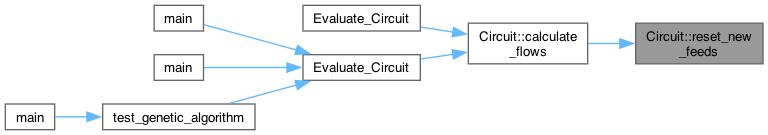

Here is the caller graph for this function:

Field Documentation

check

bool Circuit::check[3]

staticprivate

Static array to check the units

concentrateG

double Circuit::concentrateG

Concentration of gerardium in the circuit

concentrateW

double Circuit::concentrateW

Concentration of waste in the circuit

feed

int Circuit::feed

private

The feed rate for the circuit

gerardiumFeed

double Circuit::gerardiumFeed

Feed rate of gerardium in the circuit

numUnits

int Circuit::numUnits

private

The number of units in the circuit

tailingsG

double Circuit::tailingsG

Tailings of gerardium in the circuit

tailingsW

double Circuit::tailingsW

Tailings of waste in the circuit

units

std::vector<CUnit *> Circuit::units

private

Vector of pointers to the units in the circuit

wasteFeed

double Circuit::wasteFeed

Feed rate of waste in the circuit

---

The documentation for this class was generated from the following files:

• include/circuit/CCircuit.h
• investigate/CCircuit.cpp
• src/circuit/CCircuit.cpp
